Printing Photos

1. Open the front cover.



2. Pull out the cassette until it stops.



3. Slide the paper guides (A) all the way out.

4. Load paper vertically WITH THE PRINT SIDE FACING DOWN.

   Push the paper stack all the way to the back of the cassette.



5. Align the paper guides with the paper width.



6. Push the cassette back until the arrow () is aligned with the arrow ().

   After pushing the cassette back, the paper information registration screen is displayed on the touch screen.



7. Select the size and type of the loaded paper in the cassette at Page size and Type, then tap OK.



   If a message is displayed on the screen, follow the directions in the message to complete registration.

8. Extend the paper support (B).

9. Open the output tray extension (C).

10. Open the paper output tray (D) gently.

11. Extend the paper output support (E).

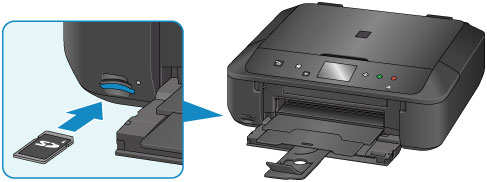

12. Insert the memory card.

    * The figure below shows the SD/SDHC memory card as an example.



    Note

    • For details on inserting memory cards other than SD/SDHC, see below.

      • Inserting the Memory Card

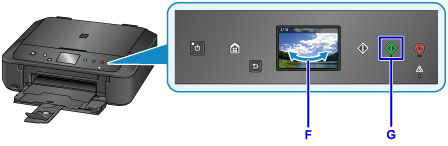

13. Flick right and left through the photos (F) and select one.

14. Confirm the paper settings, then press the Color button (G).



Important

• Do not remove the memory card during printing. Data on the memory card may be damaged.

Note

• Your machine is equipped with many other convenient photo print features.

  • Printing Photo Data
